Monday, November 18, 2013

Irrigation system blown out today

Every late fall, we blow out our irrigation system to insure that it is protected from potential winter freeze damage.  We rent a large compressor that pushes a column of air through the system.  The heads are turned on using the control boxes which are the green plastic boxes that are about 1 1/2' square and stand about 3 1/2' tall in groups of 2-4 that you see all around the course.  We manually turn on every head through the control boxes to evacuate the water from the system.

Before the event today, we opened 4 valves that drain into our lake system to remove water from the system.  We also opened our wash pad drain for this side of the course.  The more water we drain manually, the less water that has to be drained through the heads which helps to prevent damage.  The compressor''s pressure is regulator controlled to 50 psi which protects our system from potential damage from too high of pressure.  Our system runs at an operator pressure of 130 psi when full of water.  Running a compressor with air at 130 psi would be catastrophic for our system.  High pressure air can damage heads or pipes.  The compressor we use provides a large column of air at lower pressure which helps to push the water out of the system in a safe and efficient manner.   The system will be recharged in March when we have a need for water which is usually before our spring aeration.

Compressor outside the pump house ready to blow out the system.

Sprinkler heads turned on with water evacuating out the irrigation lines.

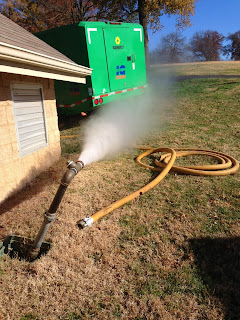

End of the day, air being released back out of system after the job was completed.
